user experience framework

Our team conducted a project kickoff bootcamp with the client to determine their core values, brand essence & equipment business objectives.

Observing that several of the clients' existing frameworks fell into a triangular structure, we took advantage of this familiarity and outlined a master  experience framework in a format that could be better understood with the client's existing vocabulary.


Supply Chain Research

We examined the complete supply chain from distributor to operator and finally to the consumer.

Bottlers & Distributors

Bottlers & Distributors

Institutions & Operators

Institutions & Operators

Quick Service & Sit Down Restaurants

Quick Service & Sit Down Restaurants

Mapping the beverage routine

We made it a  priority to analyze and understand the user's beverage routine to identify opportunities for improvement and engagement. Aside from identifying the high level steps, we drilled down and examined all potential user actions associated with each step in this routine. This work provided a foundation for exploration around the potential impact of new equipment solutions to the beverage routine.

consumer_journey-01 copy.png


Zones of Engagement

New fountain equipment call for new solutions to communicate presence and functionality while also inviting interaction from users. The Zones of Engagement framework serves as an early stake in the ground for outlining potential equipment communication methods.

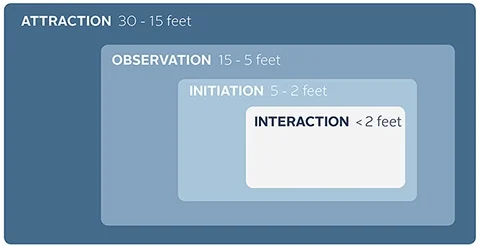

The four zones our team outlined were Attraction, Observation, Initiation & Interaction.


User Experience Feature Curve

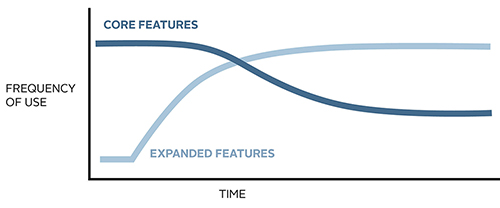

In order to fully engage with consumers, any solutions should employ a clear user experience strategy. This strategy included development of the user interface and form factors as components of a greater whole.  Additionally, long term fulfillment of this UX strategy entails facilitating and encouraging continued user interaction through future implementation of expanded equipment features.


Fundamental Concepts

From the initial research and UX development, four Fundamental Concepts were defined to serve as the basis for ongoing refinement: Human Proportions, Iconic Form, Personal Interaction & Innate Functionality.


Human Proportions

The equipment’s human similar proportions will make it approachable.


Personal Interaction

The equipment should express itself as personal and encourage interaction.


iconic form

 The equipment should be immediately recognizable as itself.

innate functionality

The form of the equipment should guide the user towards the intended use.

consumer journey

Our team combined our research on the beverage routine with the Zones of Engagement framework and the Fundamental Equipment Concepts to outline the idea consumer journey of interaction with the new fountain equipment.


A choice

At this point, our team had a choice to make.

We could choose path A:

Design for our client a beautiful, functional fountain beverage machine that compared and competed with the competitor machine on the market.

Or we could choose path B:

Compete without competing and design next generation equipment that not only delivered exceptional product, but also created an entry point for interaction and engagement with consumers, creating a brand platform for our client that allowed them new channels to speak to and serve their consumers.

This was an easy choice.

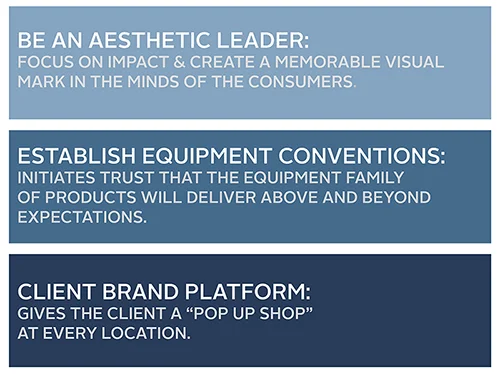

Design Objectives


Configuration studies

With our initial consumer journey and design objectives outlined, it was time to look at how these ideas could play out in a physical space that worked for the wide variety of situation the equipment would need to live. Three systems we looked at took different approaches to solving this problem. These were not aesthetic design concepts, but explorations into consumer and operator mindsets.

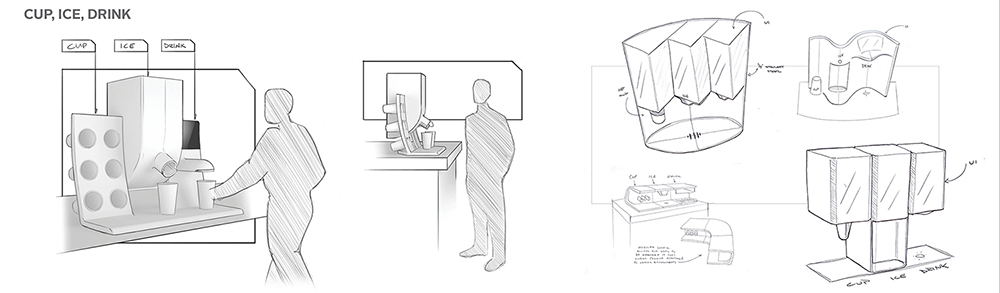

Cup, Ice, Drink was purely pragmatic. How might we get the consumer through the 3 key steps as quickly and efficiently as possible.

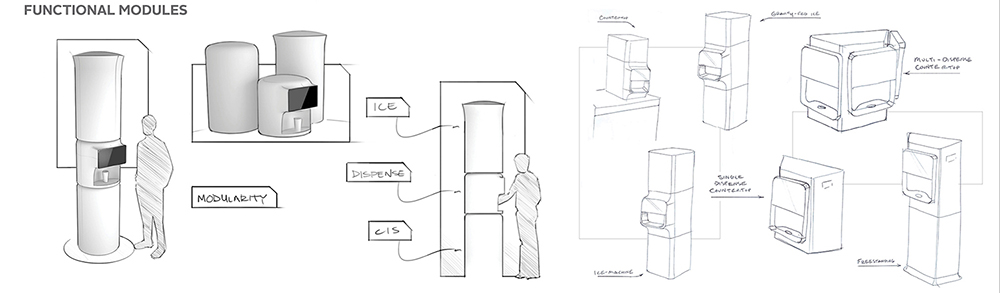

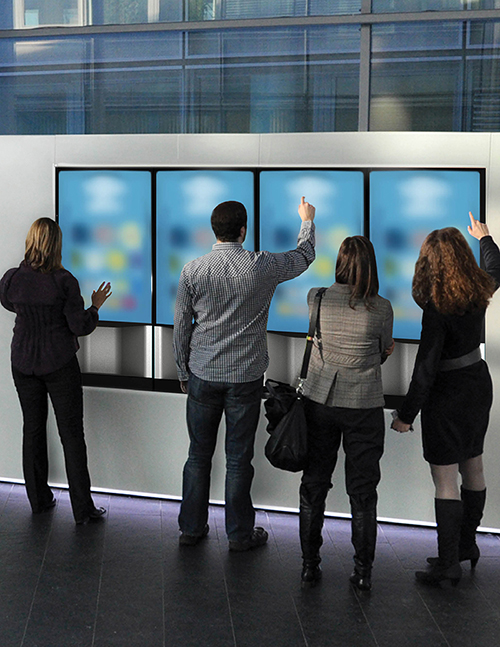

Functional Modules was, as you may guess, a modular approach that could be customized based on each specific local.

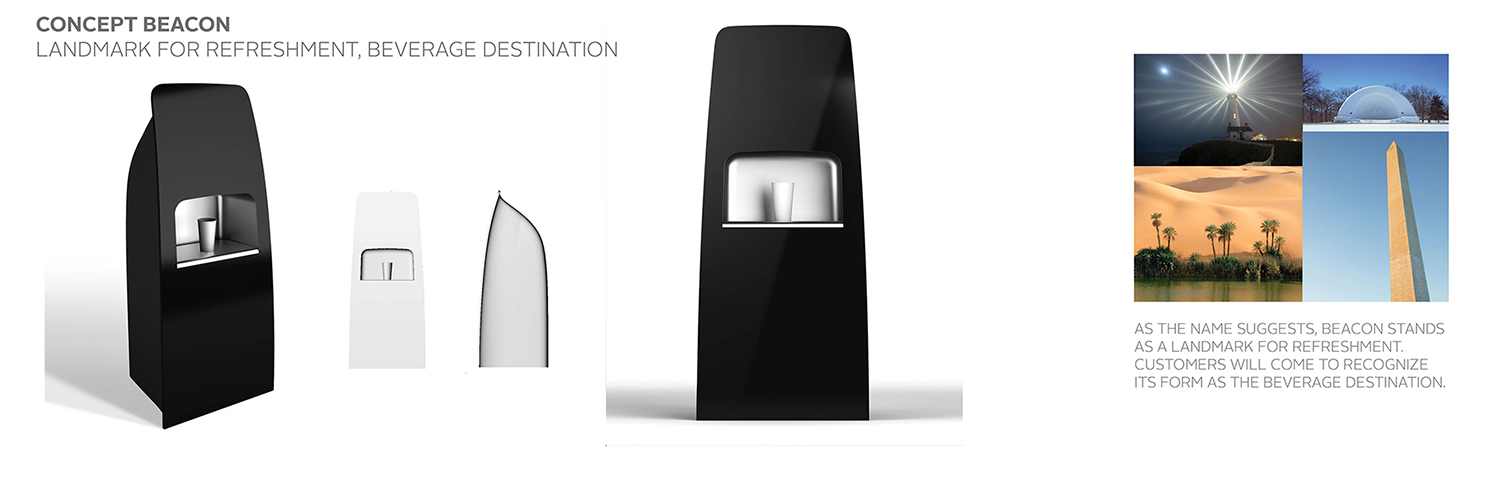

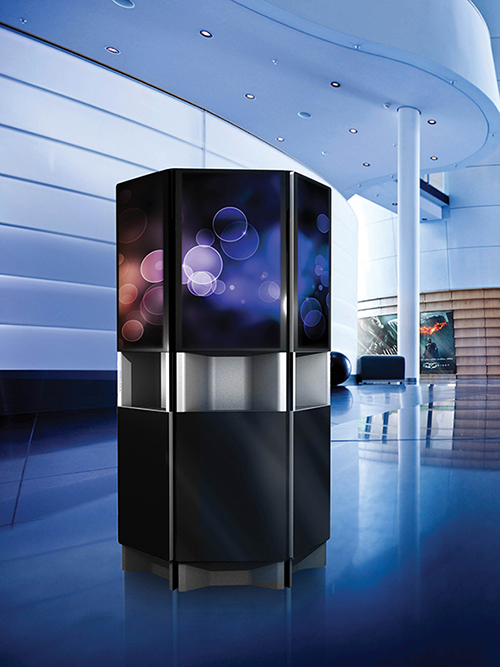

Community Oasis looked to create a gathering point, where choosing and collecting was a more social experience.


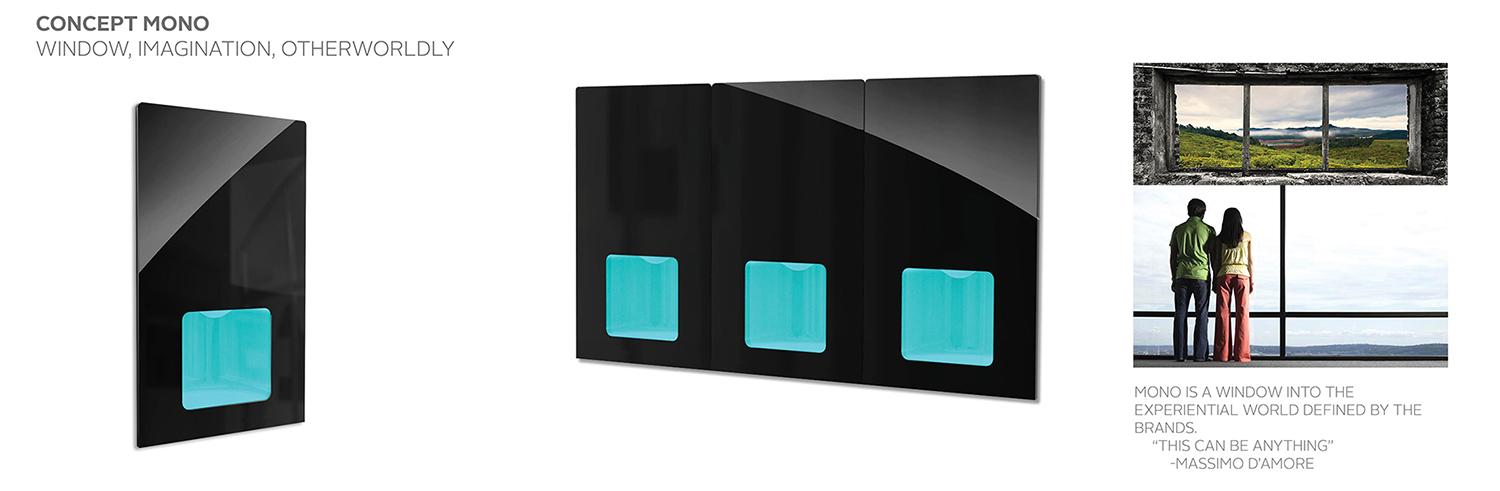

design refinement

As the design moved forward, we narrowed our focus on physical designs that would be immediately recognizable, while also allowing the hardware to  away into the overall experience. These two goals may have seemed contradictory, but if successfully enacted they would be the basis for a physical design language capable up supporting and augmenting our client's strong brands while also becoming a portal into an expanded consumer experience appropriate to 21st century brands adjusting to shifting retail landscapes.


ideal state

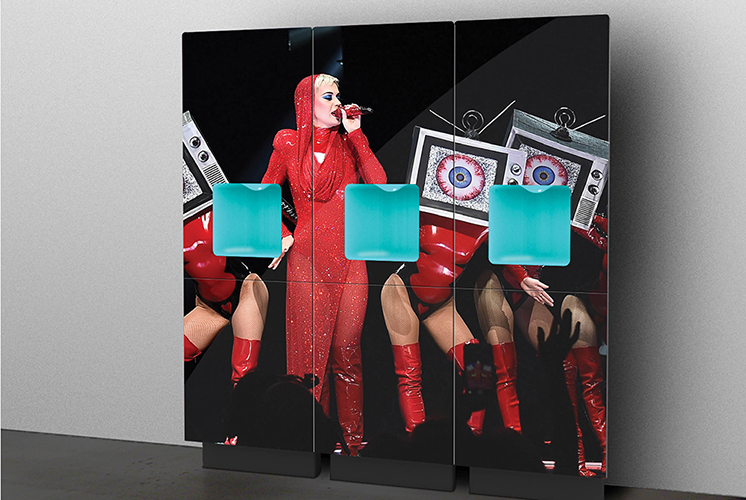

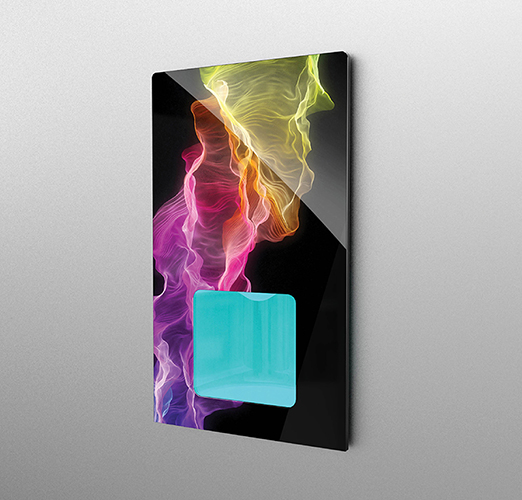

The vision for the ideal state of the equipment's physical design was to become a blank slate for the experience. A full video screen fascia with the exception of clear physical interaction points. While not in use, the machine can broadcast brand messages, assist in way-finding or find clever ways to express its personality. When in use, the large touch displays allow for a deep immersive UI.


Final Design Refinement

Visual design language

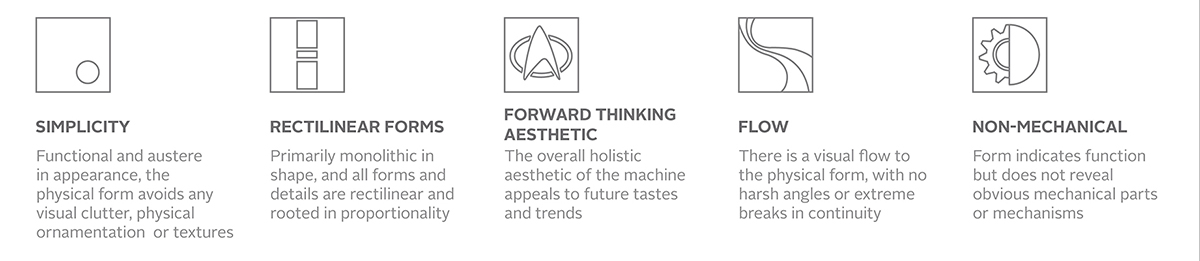

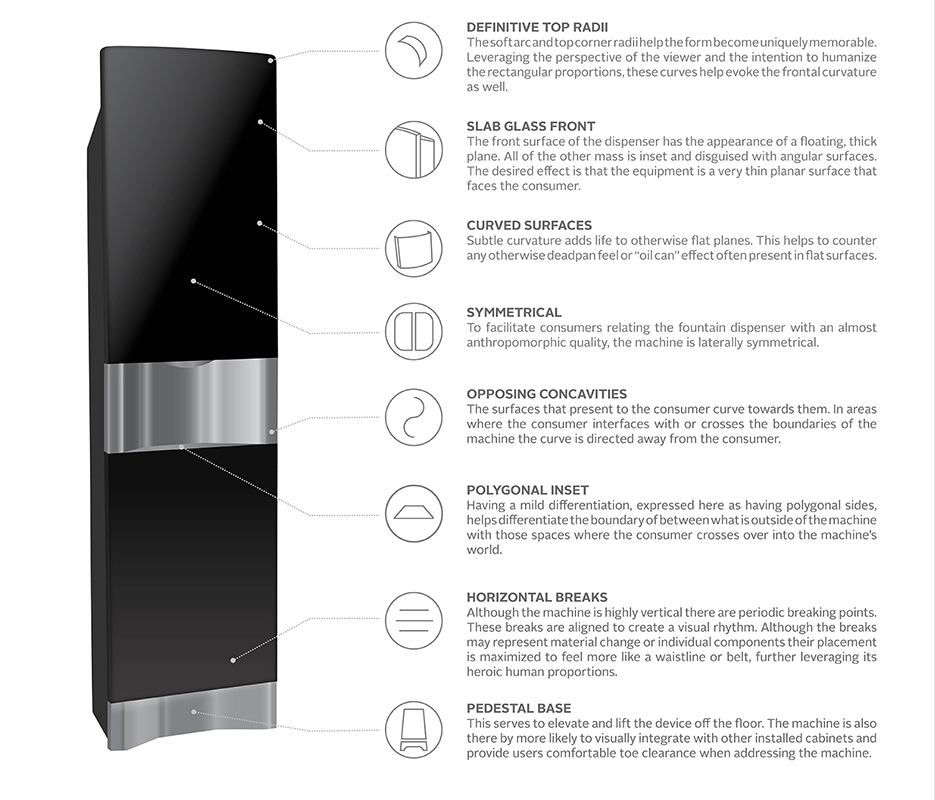

This machine was the first in an expanding catalog of equipment, our team developed design principles to outline key  attributes and signature elements to highlight specific design details that together, prescribed the client's visual design language.

Creating an Immersive UI


Transition from Physical to Digital

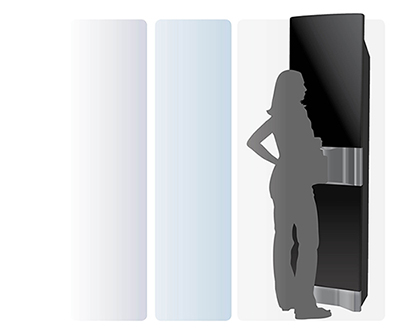

Beneath the umbrella of holistic experience design, the visual design language draws the user towards the equipment, however as they draw near, the bridge is crossed from the physical experience into the Digital Interaction Experience.

Screen zones

The final screen size landed at 40”, which afforded the space necessary to create screen zones which serve to invite users at different physical distances & engage them with varying depths of digital experiences.


interaction experience curve

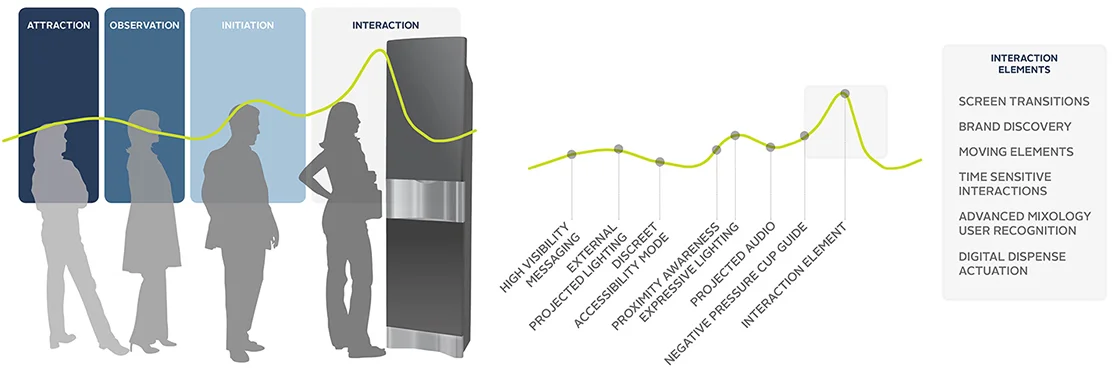

We circled back to the Zones of Engagement framework from our initial UX development and layered this over the final physical design and screen zones breakdown to outline interaction elements that invited the user to approach the machine and escorted them into the digital experience.

Persona: Bringing Equipment to Life

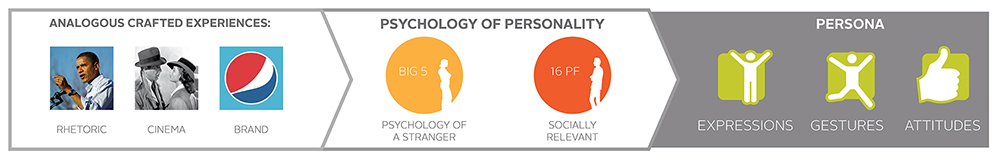

Everything has a personality that sends an emotional signal. To give this equipment a meaningful character, a personality needed to be imbued into the user experience that invited the user to further engage with the equipment. To create this personality, we look learnings from proven experiential contexts and created a profile using two common personality tests.

Persona Manifested

All user interactions with the equipment are influenced by and serve to reinforce its persona. The machine's persona is present even while idle, anticipating its next chance at interaction.

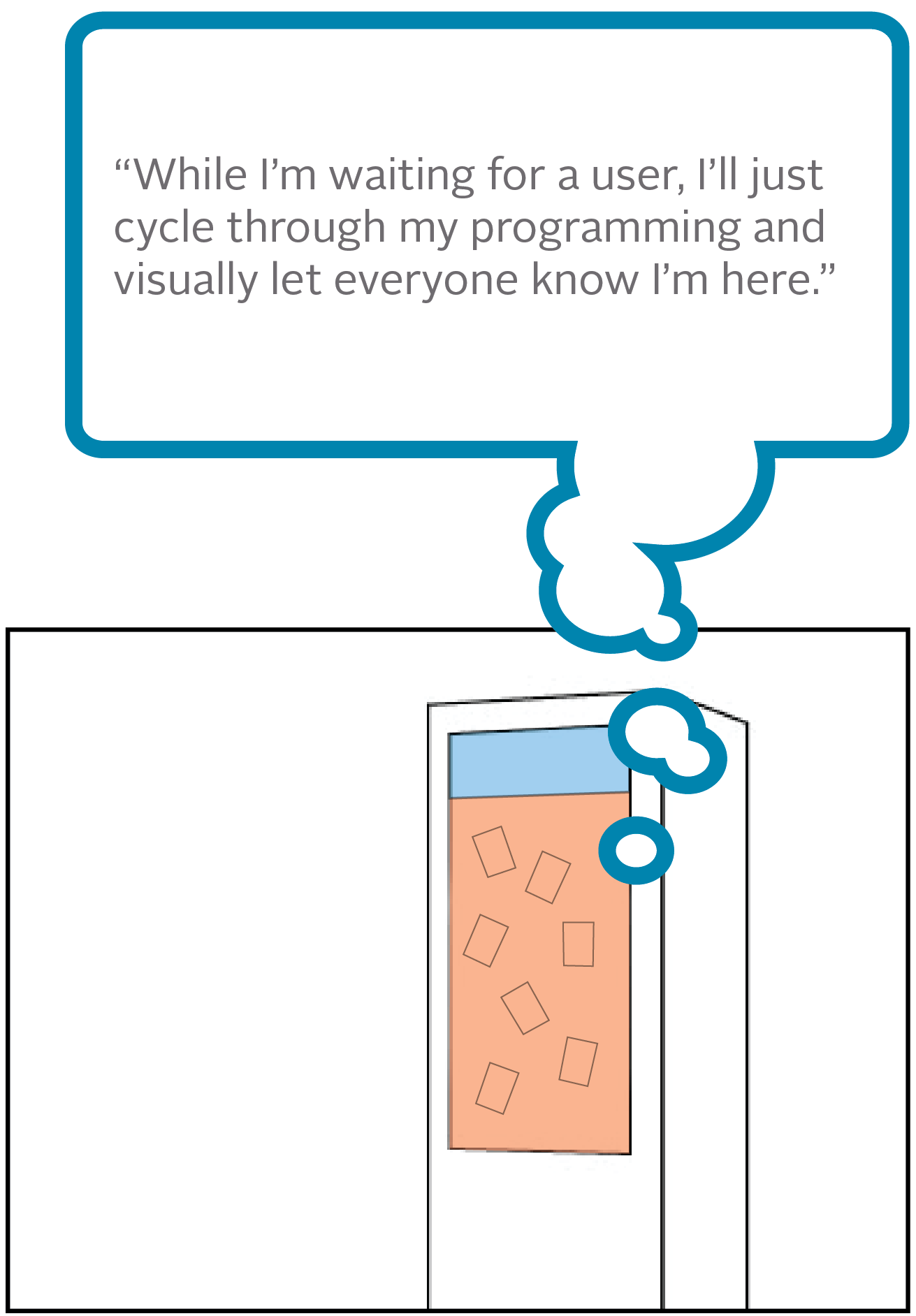

Idle mode is the first opportunity for the machine to visually express personality.

equipment detects user

Wake up transition to ready mode.

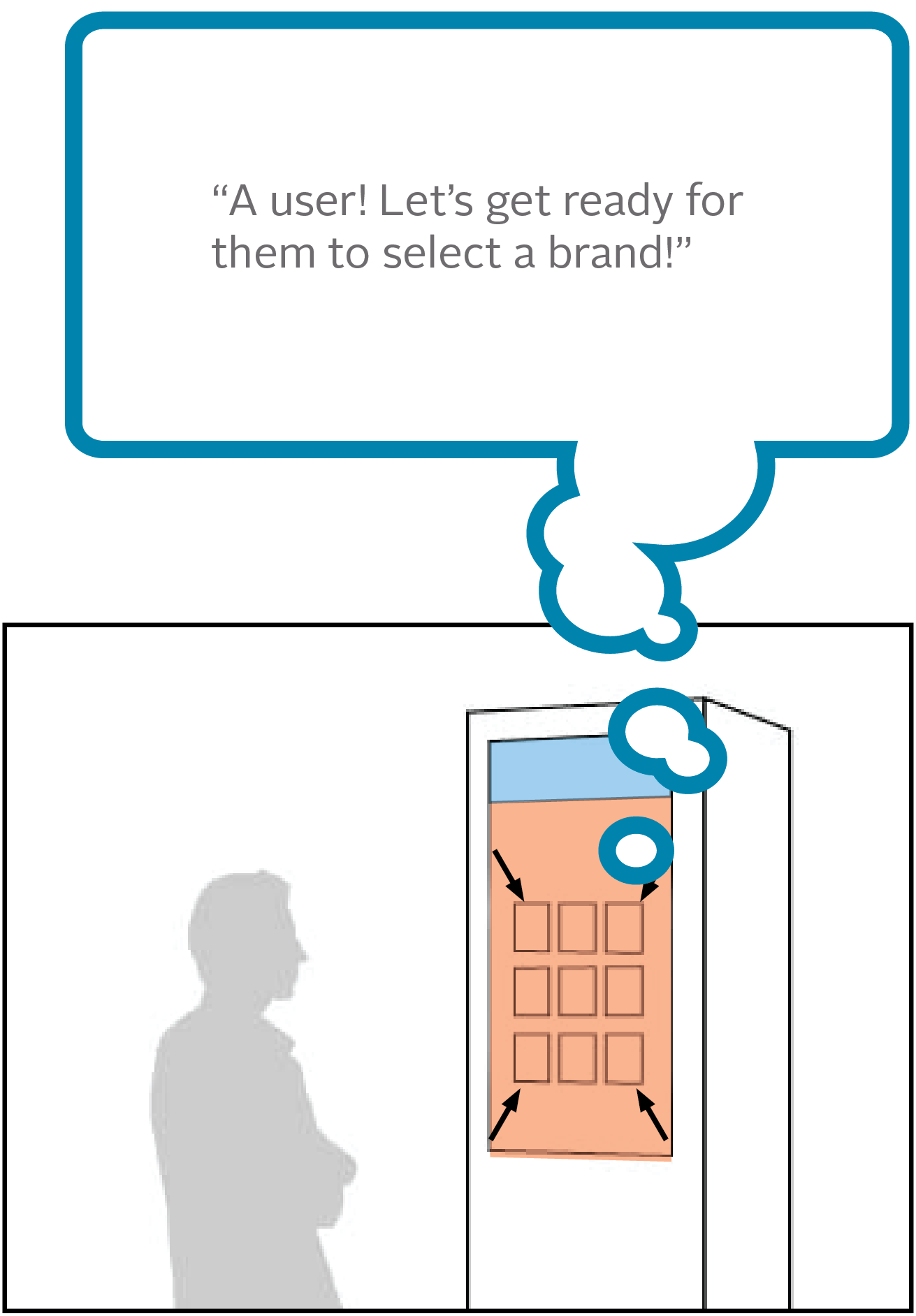

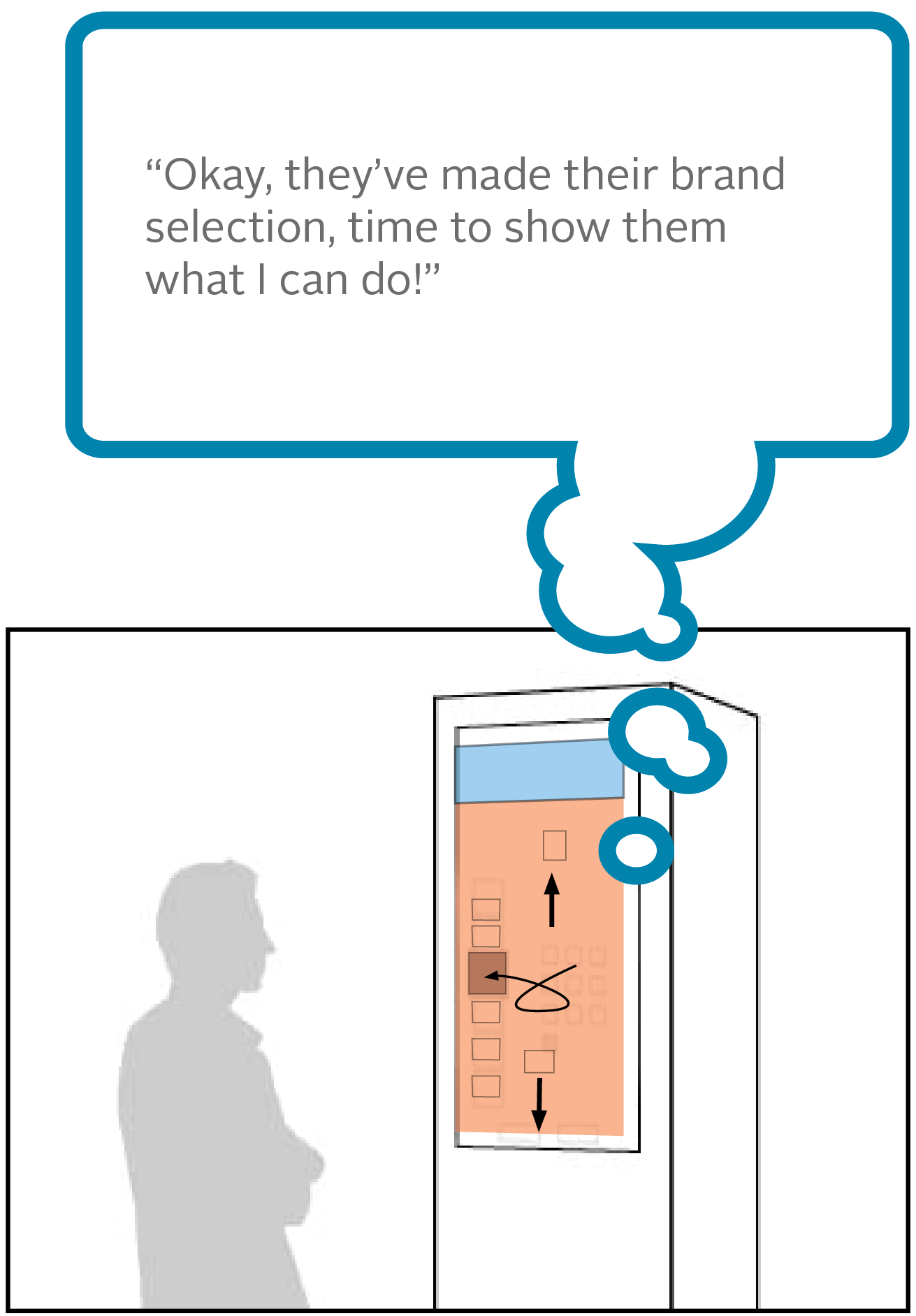

When a user approaches, the machine snaps to life and transitions into ready mode


User makes selection

Ready mode transition to program mode.

User selects a trademark brand and the machine transitions to programming mode.

meaningful impact

Persona is the tie that unifies the established product brand perceptions with the machine interaction. Providing a platform to design the perceptions and expectations of the user experience for the entire equipment lineup. Persona is the beginning of the machine's future.

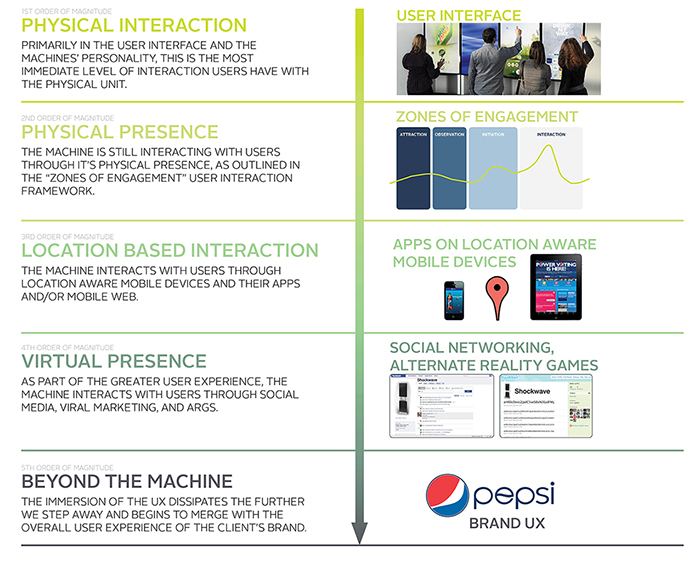

Borrowing from the Eames film “The Powers of Ten,” for a moment, imagine the user experience of the UI is the first order of magnitude in a much larger experience, unified and aligned under the common goal of creating customer engagement through immersion.


User experience extends beyond the user interface


Why create an immersive user experience?



A conduit to consumers

The premier fountain becomes the client's flagship presence. With continued development of the user experience manifested and different levels of magnitude, the equipment experience will evolve to serve as a portal for the client to connect directly with the consumer.

benefits of the immersive ux

Each increase in order of magnitude of the immersive UX results in benefits to all stakeholders.

Value to Consumer

Easy Drink Customization & Delivery

Easy Drink Customization & Delivery

Personal & Social Experience

Personal & Social Experience

New Transmedia Entertainment Experience

New Transmedia Entertainment Experience

Value to operator

Delivered Data Enhances Business

Delivered Data Enhances Business

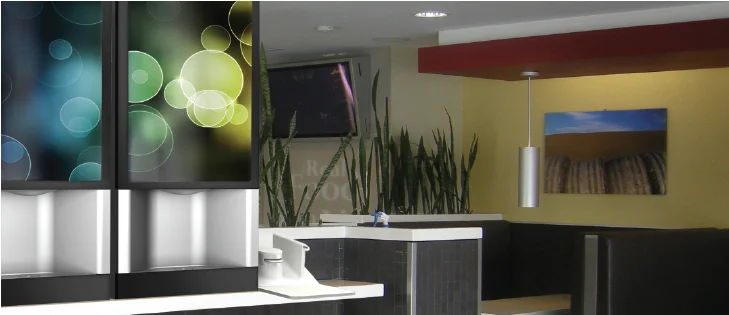

Premium Experience / Uplift to Location

Premium Experience / Uplift to Location

Increased Business of Engaged Customers

Increased Business of Engaged Customers

Value to client

Brand Differentiation

Brand Differentiation

More Product Sold

More Product Sold

More Data Collected

More Data Collected
